creo3 Drawing Setup option documentation for: radial_dimension_display


Allows display of radial dimensions in ASME, ISO or JIS standard formats, except when the dimension appears using Horizontal (ASME) format of the text orientation. This affects the style of the arrow attached to the centerline for the radial dimensions that appear in linear format.
* Use this Detail option with the default_raddim_text_orientation Detail option for setting the display of radial dimensions.

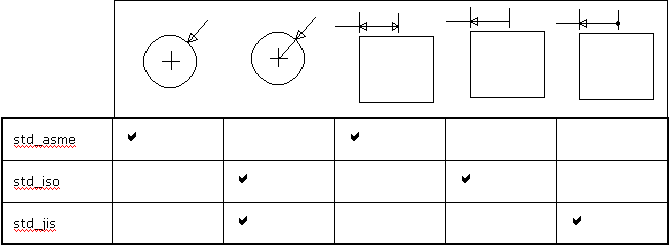

Default and Available Settings:
std_asme - Displays radial dimensions in the American Society of Mechanical Engineers (ASME) format
std_iso - Displays radial dimensions in the International Organization for Standardization (ISO) format
std_jis - Displays radial dimensions in the Japanese Industrial Standard (JIS) format
