controls the placement of angular dimensions within drawings.

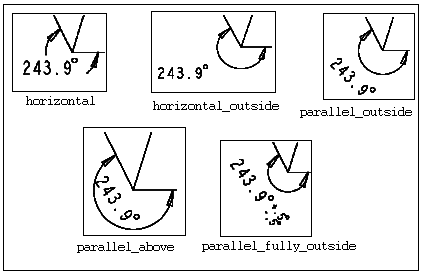

horizontal*—displays text of angular dimensions horizontally at all times, centered between the leaders (equivalent to the value "horizontal" for the drawing setup file option "text_orientation").
parallel_outside—displays text parallel to the leader lines, regardless of their orientation (equivalent to the value "parallel" for the drawing setup file option "text_orientation").
horizontal_outside—displays text horizontally outside the dimension.
parallel_above—displays text parallel to the dimension arc, but above it.
parallel_fully_outside—displays text of angular dimensions (with a plus/minus tolerance) parallel to the leader lines.
