creo4 Drawing Setup option documentation for: default_view_label_placement

default_view_label_placement

Section
Scaled
Projection
Detailed
This option is not applicable for the following types of drawing views as they do not support the automatic creation of view labels:
General
Auxiliary
Revolved
Partial
Broken
Default and Available Settings:

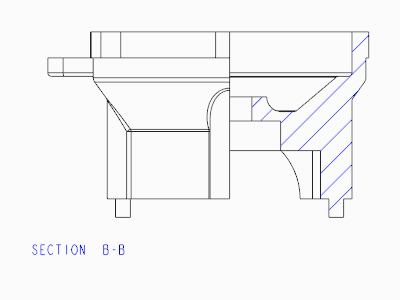

bottom_left*
The view label is placed at the bottom left of the view and the label text is right-aligned.

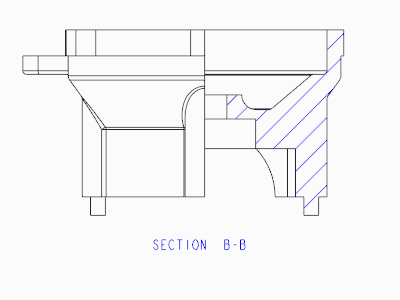

bottom_center
The view label is placed at the bottom center of the view and the label text is center-aligned.

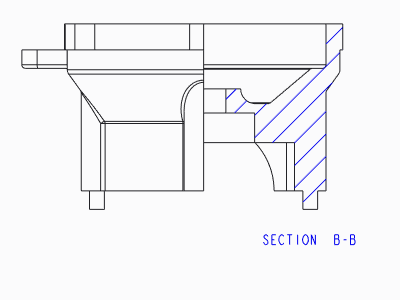

bottom_right
The view label is placed at the bottom right of the view and the label text is left-aligned.

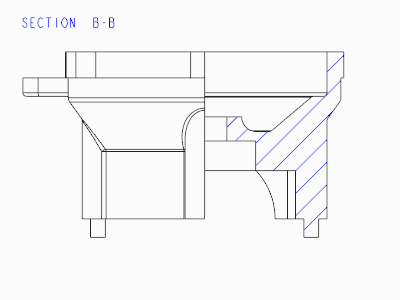

top_left
The view label is placed at the top left of the view and the label text is right-aligned.

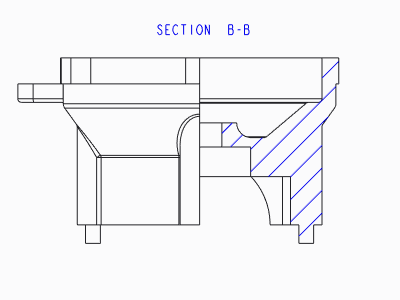

top_center
The view label is placed at the top center of the view and the label text is center-aligned.
top_right
The view label is placed at the top right of the view and the label text is left-aligned.

* To display the view labels for projection views, set the make_proj_view_notes configuration option to yes.You can then use the default_view_label_placement Detail option to specify the location of the labels for these views.
